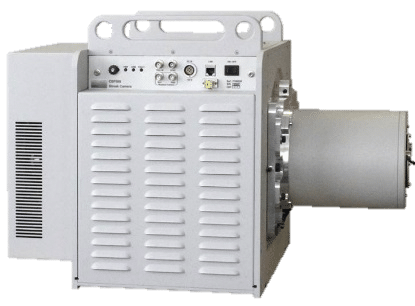

CBF500

CBF500

  • 400 – 900 nm spectral sensitivity
  • 5ps impulse response
  • 10ps trigger jitter
  • Trigger external or command
  • 5 to 50 ns analysis duration
  • 1024 x 1024, 12-bit readout camera
  • Controlled via Ethernet or Internet (Web page)
  • Option: high resolution read out cooling camera
Catégorie :

The CBF500 is well suited for single shot analysis of ultra-fast optical phenomena with high dynamic.

All settings and data transfer can be remote controlled via Ethernet (10/100Mb/s) or Internet (Web page from Internal Web server).

The architecture of CBF500 is modular allowing to change module to meet your specific needs and requirements

A power full control panel Web page provides a simple method to configure the settings, to control the state of the instrument, and to display or store acquired data.

CBF500 is a licensed product under CEA contract.



Operating principle

The light phenomena are focused onto the photocathode of a streak tube. Photocathode converts the photon in a number of electrons proportional of the intensity of the light.

These electrons are accelerated, swept and after which they are bombarded the phosphor screen to create an image.

A digitizing system is coupling to the screen tube via fiber optics to read-out the image.

This system enables precise digital acquisition stored in image memory (raw data).

Data can be processed (analyzed and data corrected) and transferred via Ethernet to provide a two dimensional waveform data.

Image magnification ratio

1 : 1

Input Slit

200 µm Width / 25 mm Length

Peak power

3 mW

Wavelength

680 nm

Connector

SMA 905

Sensitivity

5 V / 50 Ω

RMS Jitter

10 ps

Delay

100 ns

Maximum rate

1 Hz

Trigger Source

Ethernet/ Internet command

Level / rise time

5 V / 5ns under 50 Ω

Shape

Rectangular,1 µs width

Function

Mark when the Readout Camera is ready

Level

5V under 50 Ω

Sweep duration

5, 10, 20 and 50 ns

Impulse response

5 ps

Dynamic

150

Spatial magnification

1.3

Acquisition mode

Single shot, repetitive, static

Data format

Raw (image)

Setting and Data

Via Ethernet and Internet (Web pages)

Power supply

24 V DC, 100 W

Operating temperature

+20 to 30°C

Dimension

400 mm (H), 370 mm (W), 605 mm (D)

Weight / Size

21 kg

Resolution

1024 X 1024 pixels, 12-bit A/D

Pixel size

24 µm

Read noise

20e- RMS, 3e- RMS

Temperature cooling

15°C, Ambient to -50°C

Interface

Via the base module, USB to PC

Input voltage

90 V to 240 V / 50 – 60 Hz

Output Power

24 V DC, 5 A

Dimensions

77 mm (H), 170 mm (w), 321 mm (D)

Resolution

1392 X 1040 pixels, 16-bit A/D

Analysis duration

5 ns, 10 ns, 20 ns, 50 ns

Spectral response

300-900 nm

CCD readout resolution

1024 x 1024 pixels, 12-bits A/D, 16-bit A/D, cooling

Spectral transmission (UV)

400 nm – 900 nm
