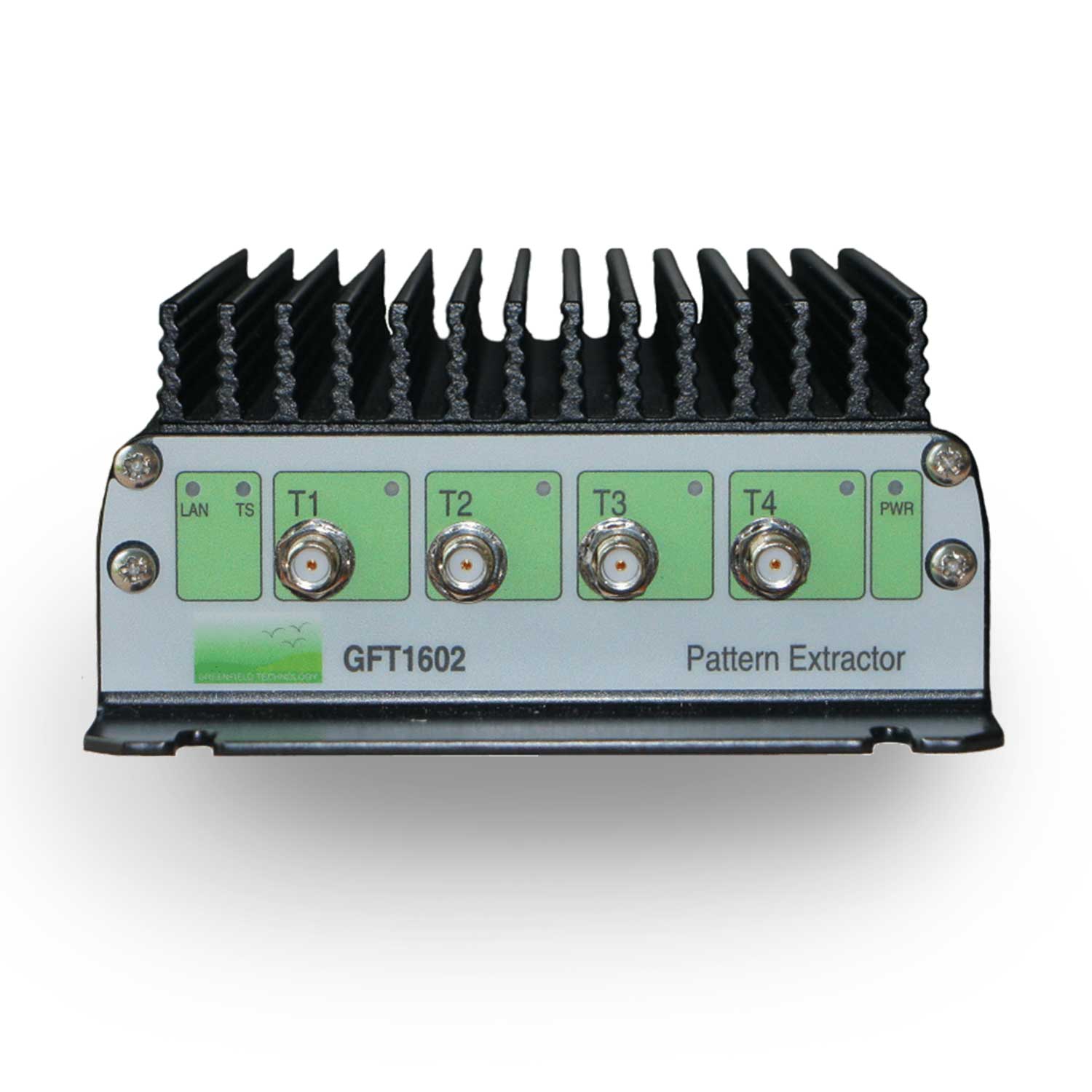

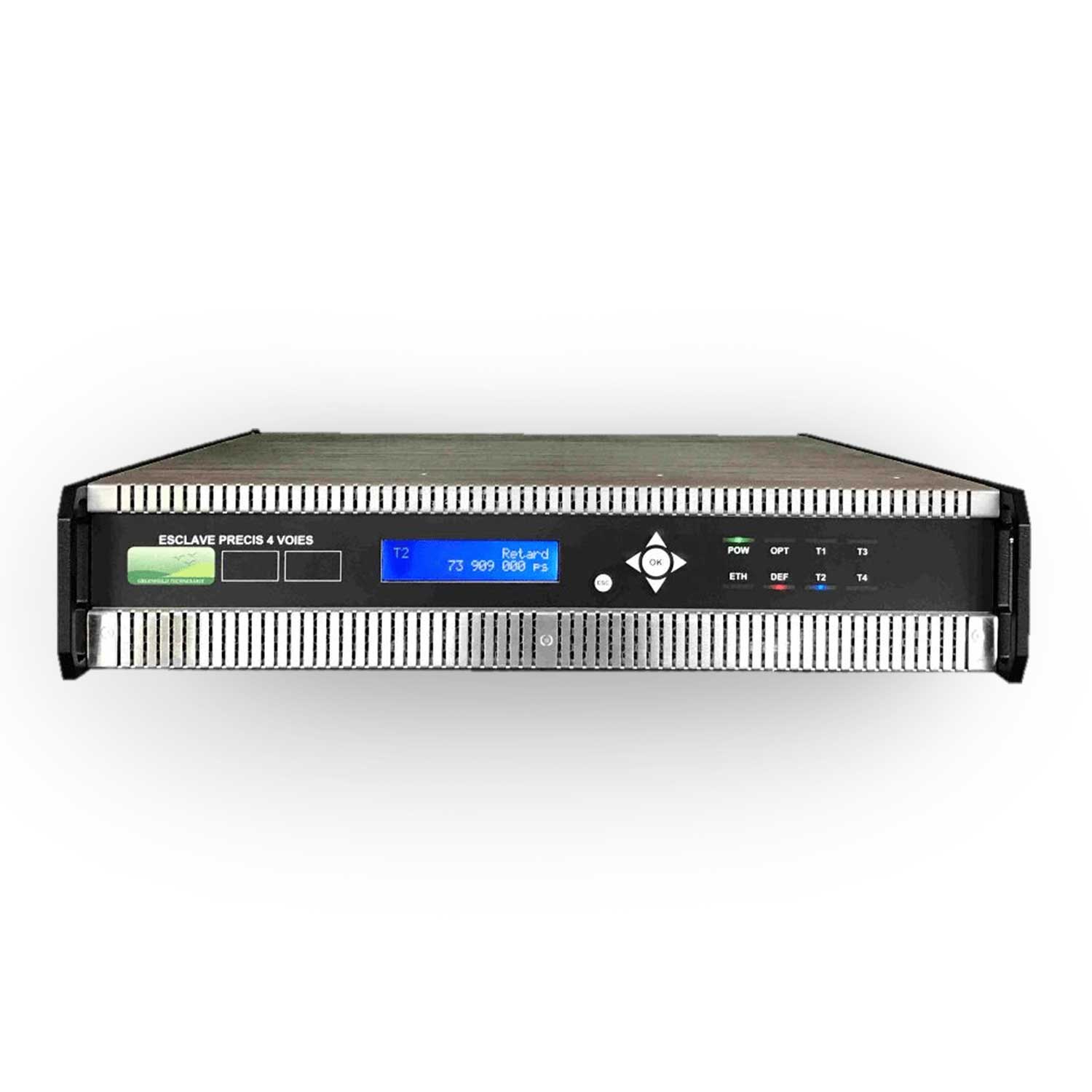

GFT1602

Key features

• Number4

• RMS Jitter25 ps

• Output amplitude (50 Ω load)3.3 V

• Remote controlEthernet

Timing system

• Distance between Master and SlaveUp to 1 km

Internal timebase

• Frequency160 MHz
• Stability± 50 ppm

Serial optical data stream input (OPT)

• Optical power-15 dBm to -25 dBm (max: -10 dBm / min: -30 dBm)
• Wavelength1550 nm ±10 nm
• ConnectorLC/PC
• Master T0 OUT to GFT1602 Ti latencyLower to 800 ns + optical network propagation delay

Delayed output (T1 to T4)

• Level+3.3 V +/- 0.2V
• Impedance50 Ω
• Rise timeLower to 1 ns, 600 ps typ.
• WidthProgrammable, 100 ns to 1 ms +/- 30 ns, 6.25 ns steps
• ShapeSquare
• Trigger sourcesFINT, Optical trigger: single shot and repetitive trigger
• ConnectorSMA

Trigger sources

• Internal frequency (INTernal (FINT))1 Hz to 100 kHz (1 Hz step)
• Optical triggerSingle Shot or repetitive

Delay generation (T1 to T4)

• Range0 to 1 seconds
• Resolution1 ps
• AccuracyLower to 250 ps + delay * 10-7
• Drift (for short delay)Lower to 20 ps pp /°C @ 24 hours (GFT1602 to GFT1602)
• RMS jitter (Optical trigger - Channel to channel)Lower to 10 ps rms + delay * 10-7
• 4 ps rms typ + delay * 10-7
• RMS jitter (Optical trigger - GFT1602 to GFT1602)Lower to 25 ps rms + delay * 10-7
• 10 ps rms typ + delay * 10-7
• RMS jitter (Internal trigger - Channel to channel)Lower to 10 ps rms + delay * 10-7

Interface

• EthernetTelnet commands, Web page
• 1 Gb/s - RJ45

Power supply input

• Power20 W / 5V±5% DC

General

• WeightLower than 5 kg (11.023 lbs)
• Dimension155 x 110 x 50 mm

Options

• 1M: Master Oscillator transmitter
• 2OTS/OTB: Optical input for timing System mode / Bidirectional link. 1550 nm
• jitter lower to 10 ps rms + delay x 10-7 (channel-to-channel in internal trigger)
• single or repetitive trigger
• 3-SFPLX: Ethernet with SFP module – 770 nm to 860 nm
• -SFPSX: Ethernet with SFP module – 1270 to 1355 nm
• 4-TB: Time base between 100 to 200 MHz
