GFT102

  • 2.5 to 10 V Input Pulse

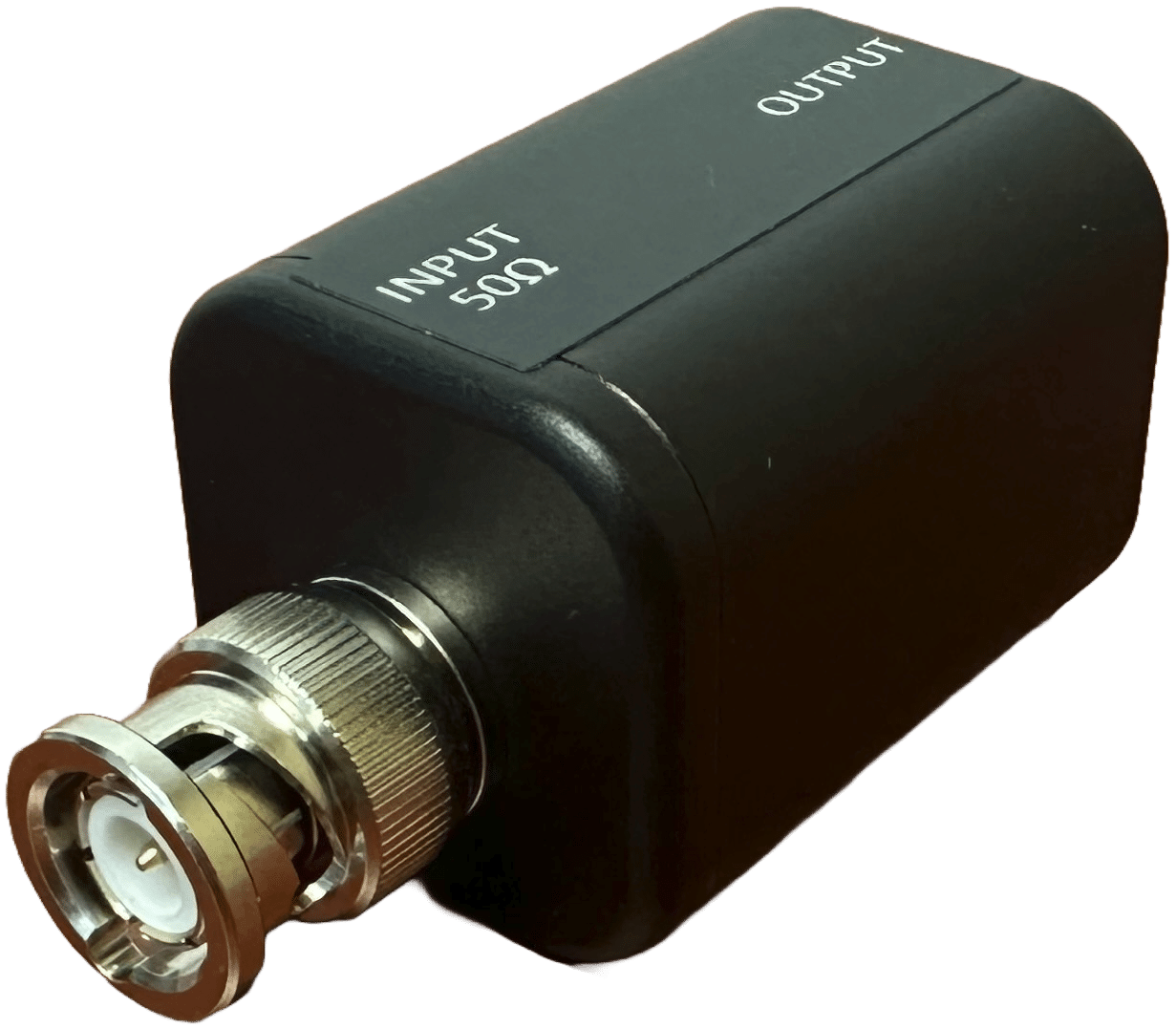

    The GFT102 module is designed to convert fast electrical pulses to fast optical pulses of 1 mW (@ 10V IN).

  • Compact and rugged module

    This module combined with GFT201 (Optical to Electrical Converter) is ideal to transmit pulses/triggers to remote location up to 1 Km

  • < 1 ns output rise time

Request a quote

Applications

  • Long distance pulse/trigger transmission
  • High EMI environments transmission
  • Laser research
  • High-energy physics
  • Picosecond timing
  • Instrument Triggering
GFT102

The GFT102 module is designed to convert fast electrical pulses to fast optical pulses of 1 mW (@ 10V IN).

This module combined with GFT201 (Optical to Electrical Converter) is ideal to transmit pulses/triggers to remote location up to 1 Km and when the critical pulse has high common voltage with respect to the measurement equipment.

Key features

Input

  • Pulse polarity Positive
  • Level +2.5 V to +10 V
  • Impedance50 Ω ± 5 %
  • Rise time Lower than 1 ns
  • Min. width (FWHM) 10 ns
  • Max. Frequency > 1 MHz
  • Connector BNC

Output

  • Pulse polarityPositive
  • Power 50 uW min @ +2.5 V
  • Rise timeLower than 1 ns
  • Wavelength1310 nm ± 20 nm
  • Min. width (FWHM)10 ns
  • Max. insertion delay 5 ns
  • JitterLower than 10 ps RMS
  • Connector FC/PC

General

  • Size 42 x 30 x 30 mm (w/o connectors) 62 x 30 x 30 (w/ connectors)
  • Operating temp. 15 to 35 °C

Options

  • Option 1 :
    -FC: Base version
    -SC: Adapter FC to SC
    -ST: Adapter FC to ST
    -LC: Adapter FC to LC
  • Option 2 :
    -13: 1310 nm wavelength (Base version)
    -85: 850 nm wavelength

  • Download data sheet
