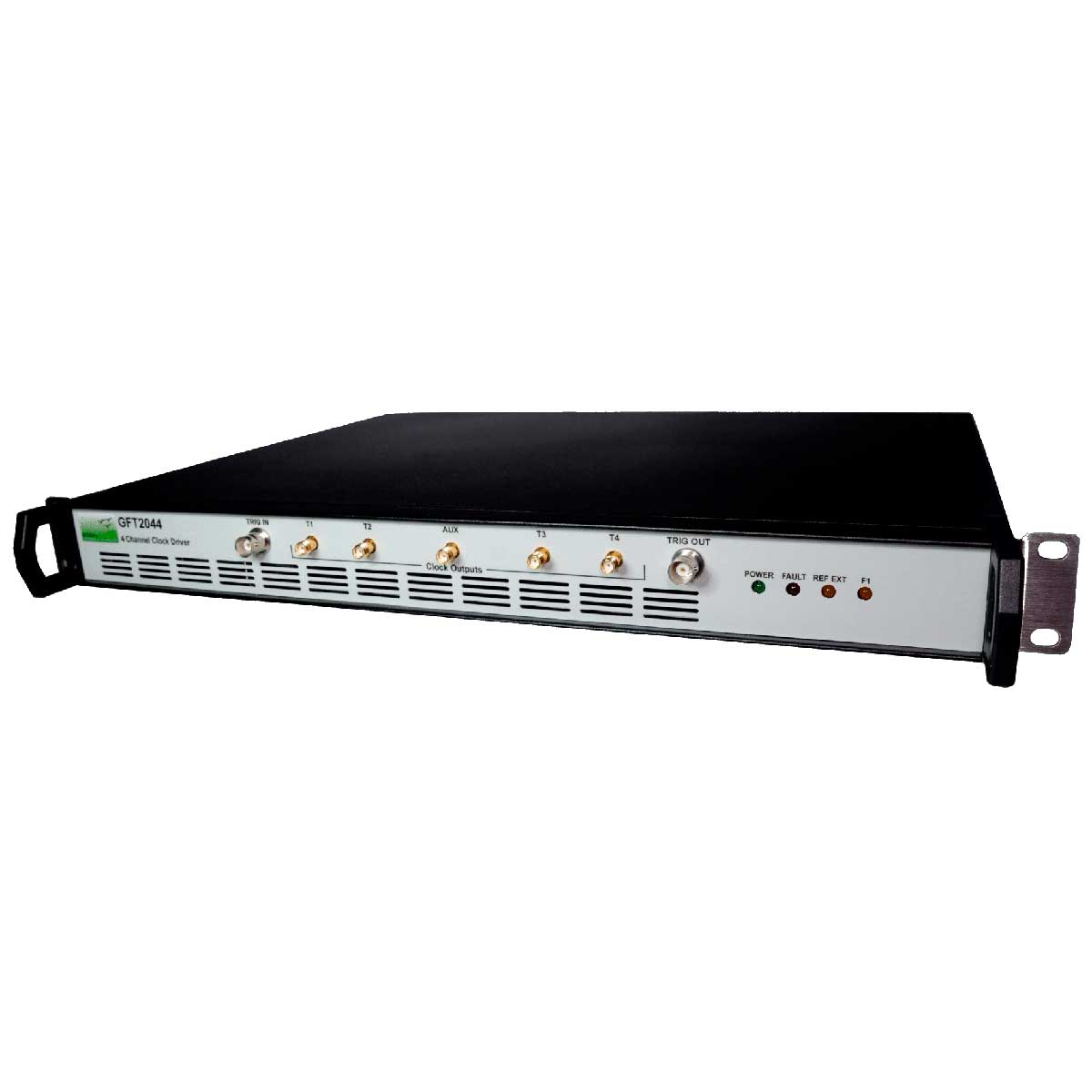

GFT2044

4 synchronous high speed clock drivers
Four synchronized onboard frequency synthesized generators allow to control the output clock up to 4 GHz.
Easy remote controlled from standard Internet browser
GFT2044 parameters may be remotely controlled over Ethernet and Internet via internal web server.
Compact packaging 19" W x 330 mm D x 1U H

Applications

High Speed Digitizer system
Arbitrary Waveform system
RADAR
RF Communication
Ultrasound
Laser Doppler Velocimetry
ATE (Automatic Test Equipment)

The GFT2044 is designed to provide clock distribution to synchronize up to for (4) A/D and D/A systems and arbitrary waveform generator.

Four synchronized onboard frequency synthesized generators allow to control the output clock up to 4 GHz. The synthesized generator is locked to an onboard 100 MHz reference clock and is used in conjunction with phase lock loop to control the programmed clock rate and phase value.
An external 100 MHz reference can also be selected.

4 GPIO lines is available for communication to external equipment.

GFT2044 parameters may be remotely controlled over Ethernet and Internet via internal web server.

Key features

Reference Clock Input100 MHz

Clock frequency1 to 4 Ghz

Programmable phase10 fs

Remote controlEthernet

Clock channels

Number4 synchronized
Frequency range1 GHz to 4 GHz in step of 100 MHz (for other value ask to factory)
Phase range0 to 360° in step of 10 fs
Channel to channel jitter1 ps RMS

Internal Time Base

Frequency100 MHz, 100 ppb stability
Accuracy10-6
Phase noise @ 1KHz offset-155 dBc/Hz

Clock Channel Output

Level / Shape-4 dBm, -1 dBm, +2 dBm et +5 dBm / Square Adjustable independently on each channel
ConnectorSMA

Trigger input

Trigger Level100 mV to 5 V
Min width20 ns (TBC)

Trigger Output

FunctionInput trigger synchronous with reference clock
Level10 V, Trise lower than 5 ns into 50 Ω

Reference Input

LevelMin -6 dBm, typical +2 dBm, max +8 dBm, threshold 0 V, internal 50 Ω
ShapeSine or Square
Frequency100 MHz (for other value ask to factory)

Reference Output

Level400 mV p-p
ShapeSquare
Frequency100 MHz

AUX clock Output

FunctionAsk to factory for specific application

GPIO under software control

4 Inputs or outputs0 or 3V level, SUB-D 9 ways connector

General specifications

Interface ControlEthernet 10/100/1000 Mb/s
Power consumption / supply25 W / AC 88 - 264 V, 47– 63 Hz
Operating temperature10°C to 35° C
WeightUnder 5 kg
Size19" W x 330 mm D x 1U H
